ESD Rubber Mat 1.8mm-3mm Thickness 10e6-10e9 Ohm Surface Resistance
Detalhes do produto:
| Lugar de origem: | Xangai, China |
| Marca: | Herzesd |
| Número do modelo: | Hz-30617 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 |
|---|
|
Informação detalhada |
|||
| Grossura: | 1.8mm, 2mm, 3mm | Material: | borracha de nitrila |
|---|---|---|---|
| Resistência à superfície: | 10E6-10E9 Ohm | Sob resistência da camada: | 10e3-10e6 ohm |
| Resistência ao volume: | 10E7-10E10 ohm*cm | Tamanho normal: | 1m*10m; 1,2 m * 10 m |
| Opções de cores: | Verde, cinza, azul | Acabamento superficial: | Matt/brilhante |
| Estrutura da camada: | 2 camadas (parte superior dissipativa, fundo condutor) | Resistência de solda: | Sim |
| Resistência química: | Sim | Tamanho personalizável: | Sim |
| Cor personalizável: | Sim | Embalagem: | PE Bag |
| Número do modelo: | Hz-30617 | ||
| Destacar: | ESD rubber mat 1.8mm thickness,ESD rubber mat 10e6 ohm resistance,anti-static rubber mat 3mm thick |
||
Descrição de produto

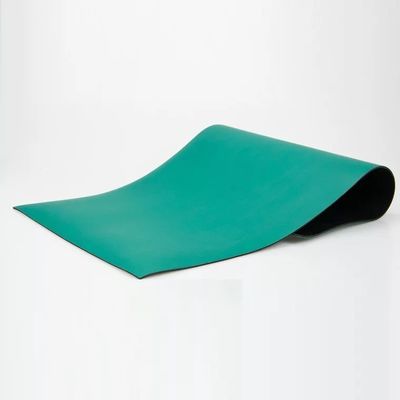

ESD Table Mat Antistatic Dissipative Sheet ESD Rubber Mat
HerzESD offers a comprehensive range of ESD table mats available in flexible rubber and vinyl materials, as well as rigid options. These ESD products and static control equipment serve the high-tech industry with reliable performance.
Our ESD Rubber and PVC mats feature:
- Resistance to hot solder and chemicals
- Two-layer construction - static dissipative top and black conductive bottom
- Suitable for general electronics assembly
- Available in 2-layer mat or single layer homogeneous material

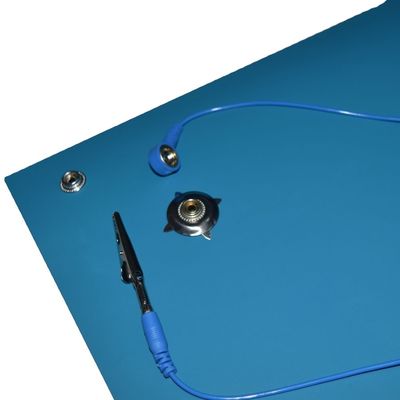

- Options include rolls or complete ESD work surface mat kits with ground snap and common point ground
- Custom sizing available for special requirements
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
