Customizable ESD EVA Foam Inserts with 80-100Kg/m3 Density and 10e3-10e9 Ω.cm Resistivity for Electronics Packing
Detalhes do produto:
| Lugar de origem: | Zhejiang, China |
| Marca: | Herzesd |
| Número do modelo: | HZ-1204 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 |
|---|
|
Informação detalhada |
|||
| Material: | Eva espuma | Cor: | Preto |
|---|---|---|---|
| Densidade: | 80-100 kg/m3 | Resistividade de volume: | 10e3-10e6 Ω.cm, 10e6-10e9 Ω.cm |
| Modelo: | HZ-1204A, HZ-1204B | Tipo condutor: | Antiestático |
| Personalização: | aceitável | Suporte ao design: | Disponível com amostra |
| Proteção de ESD: | sim | Absorção de choque: | sim |
| Adequação do produto: | Personalizável | Uso de empacotamento: | Eletrônica |
| Controle estático: | ESD seguro | Tipo de material: | Espuma |
| Escala da resistividade: | 10e3-10e9Ω.cm | ||
| Destacar: | 80-100Kg/m3 Density EVA Foam,10e3-10e6 Ω.cm Resistivity ESD Foam,10e6-10e9 Ω.cm Resistivity Foam Inserts |
||
Descrição de produto
ESD EVA Foam Customizable Packaging Inserts
Technical Specifications
| Item | Technical Data | |
|---|---|---|
| Conductive | Antistatic | |
| Model | HZ-1204A | HZ-1204B |
| Color | Black | Black |
| Density | 80-100Kg/m³ | |
| Volume Resistivity | 10³-10⁶ ohm.cm | 10⁶-10⁹ ohm.cm |

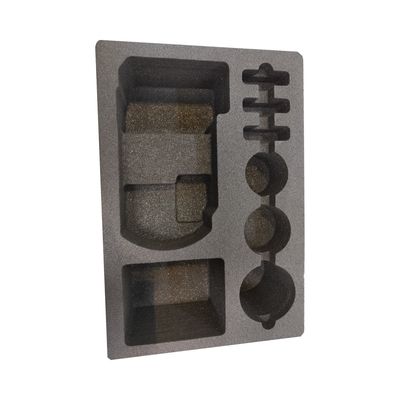

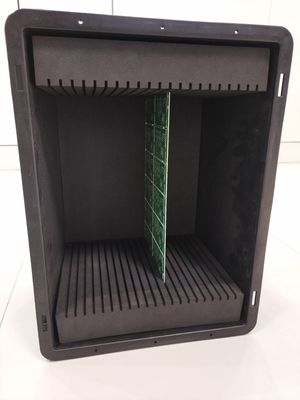

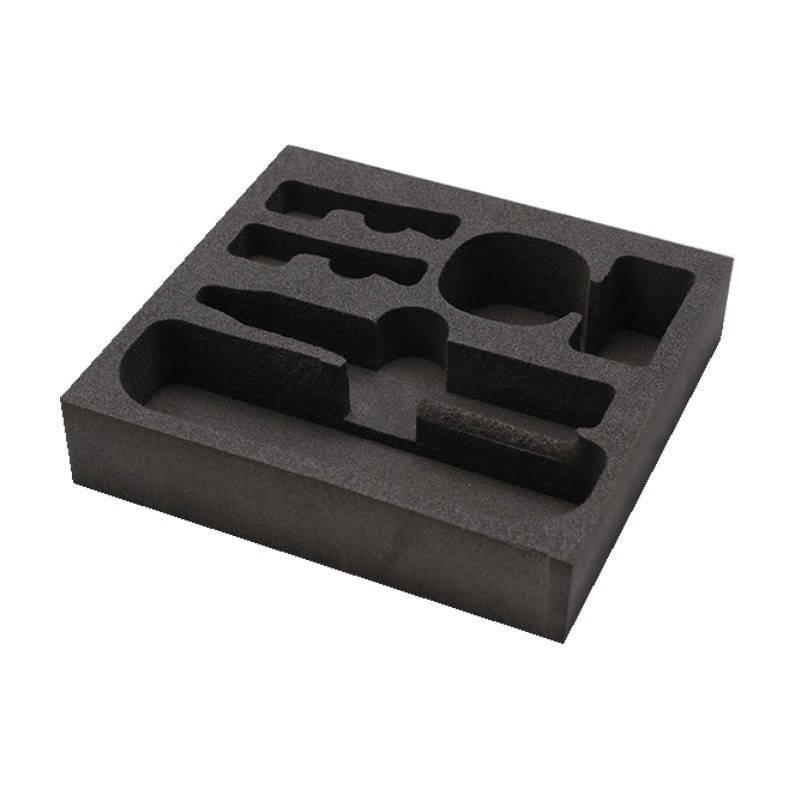

Customizable EVA Foam Packaging Inserts
EVA foam inserts are specially designed and cut from ethylene-vinyl acetate (EVA) foam pieces, used inside boxes and packaging to cushion, protect, and secure products. They can be customized to fit any product shape or size, minimizing movement and absorbing shocks during shipping, handling, and storage.
Why ESD Protection is Essential for Your Production Line
Electronic components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
Why Choose HerzESD?
HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better means contradicting a more established but sometimes flawed opinions on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.
To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
