ESD Acrylic Sheet with Excellent Insulation and Chemical Resistance Suitable for Electronics Electrical and Industrial
Detalhes do produto:
| Marca: | Herzesd |
| Certificação: | Rohs |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 500 kg |
|---|---|
| Preço: | USD+8-10+KGS |
| Detalhes da embalagem: | Paleta ou caixa de madeira |
| Tempo de entrega: | 5-7 dias úteis |
| Habilidade da fonte: | 1000+KGS+5 dias |
|
Informação detalhada |
|||
| Grossura: | 3/ 4/ 5/ 6/ 8 / 10 / 12 / 15 / 20 / 25 / 30 / 35 / 40mm | Tamanho: | 1020 mm x 1220 mm |
|---|---|---|---|
| Material: | Fibra de vidro, resina epoxi | Nome do produto: | Folha de fibra de vidro epoxi FR4 |
| Aplicativo: | Eletrónica/Indústria/Indústria | ||
| Destacar: | ESD acrylic sheet for electronics,chemical resistant ESD acrylic sheet,insulating ESD acrylic industrial sheet |
||
Descrição de produto
Description

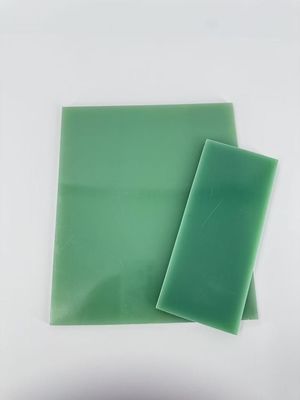

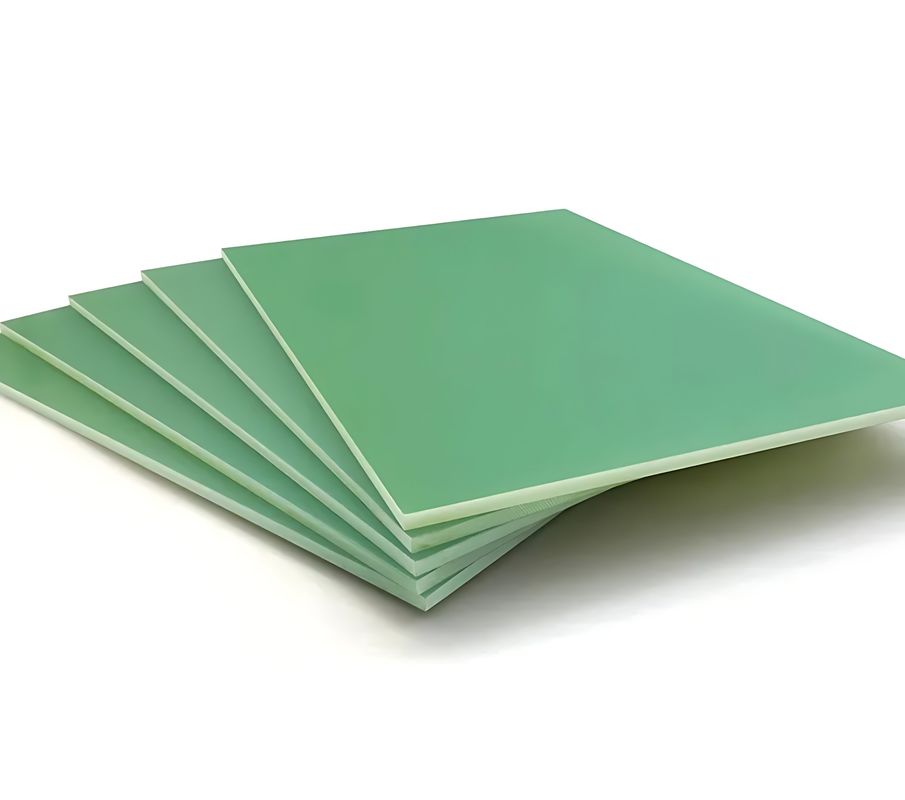

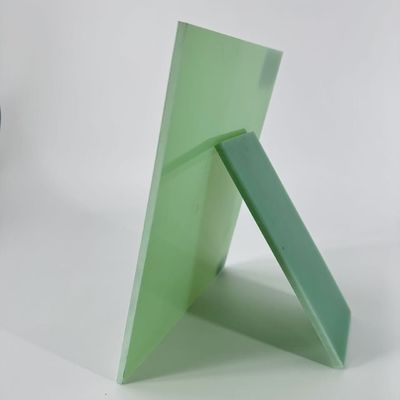

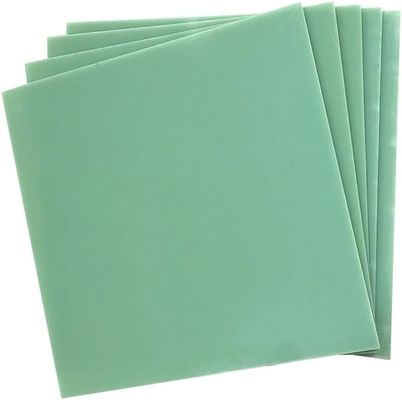

- Made from high-quality fiberglass and epoxy resin, G10 FR4 offers exceptional mechanical strength, excellent insulation properties, and high heat resistance. Ideal for applications in electronics, electrical equipment, and industrial machinery.
- With stable performance and compliance with international quality standards, it can be customized to meet specific size and shape requirements.
G10 fiberglass boards are made of a special glass epoxy laminate that has extremely high strength.
G10 fiberglass is used in marine applications due to its superior strength, moisture resistance, and excellent fire and electrical insulation.
Key Features
- Temperature: Up to +120°C continuous (+130°C intermittent).
- Good mechanical and electrical characteristics.
- Good chemical resistance.
- High strength.
Shipment:
Data sheet

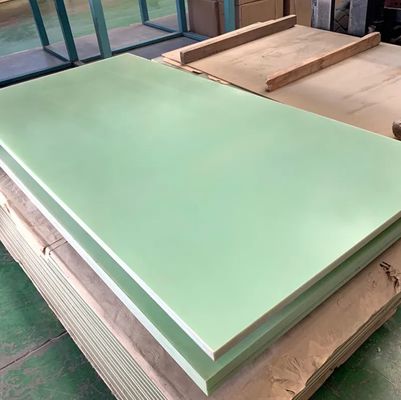

Size:1020mm x1220mm, can be customized size
Thickness: 0.3mm - 50mm; Special thickness can be customized
| Properties/Items | Test Method | Unit | HLD-B002 | HLD-B003 | |
| Physical Data | Specific Gravity/Density | g/m³ | 2.0-2.1 | 2.0-2.1 | |
| Color | Light Green | Light Green | |||
| Temperature Index | ℃ | 120 | 120 | ||
| Water Absorption | E-24/50+D-24/23 | % | 0.07-0.16 | 0.08-0.2 | |
| Mechanical properties | Bending Strength | A | Mpa | ≥440 | ≥400 |
| Impact strength | A | kJ/㎡ | ≥90 | ≥70 | |
| Rockwell Hardness | A | M | 110 | 90 | |
| Compressive Strength | A | Mpa | 340-440 | 280-330 | |
| 290-390 | 180-230 | ||||
| Electrical Data | Dielectric strength | 2mm, in oil | KV/mm | ≥14 | ≥14 |
| 2mm, in oil | KV | 40 | 40 | ||
| Unit resistivity | C-96/20/65 | Ω.cm | ≥ | ≥ | |
| C-96/20/65+C-96/40/90 | Ω | ≥ | ≥ |
